Free CAD Design for Pallet Racking
Product Details
| Type: | Pallet Rack, Multi-Level | Use: | Warehouse Rack, Industrial, Heavy Duty, Storage Equipment |
|---|---|---|---|
| Weight Capacity: | 800kg-4000kg/level | Color: | Orange, Grey, Blue, RAL System, Customized As Required |
| Surface Treatment: | Powder Coating, Galvanized | Port: | Nanjing Or Shanghai Port |
| Hs Code: | 730890 | Brand: | Shitong Racking |
| Free Design: | Yes | ||
| Highlight |
Free CAD pallet racking design,Selective pallet racking system,Custom pallet racking CAD |
||
Product Description

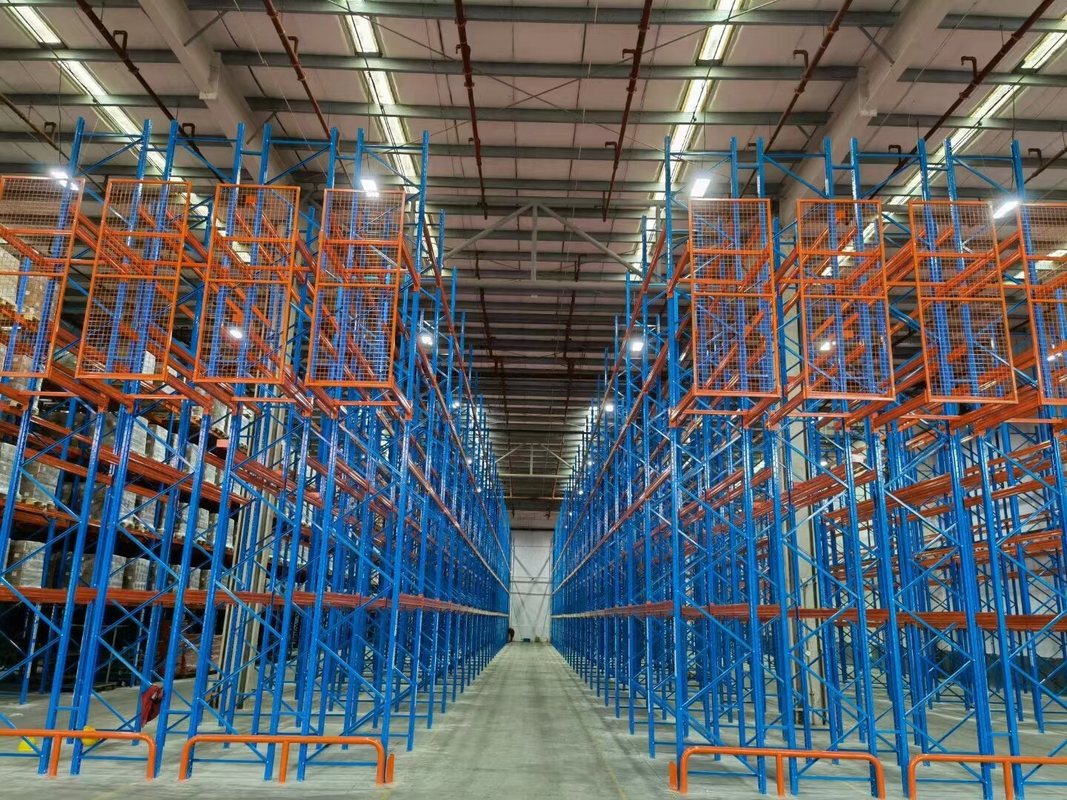

Selective Pallet Racking
A pallet rack is a storage system used in warehouses, factories, or logistics centers to store pallets containing goods. It makes full use of vertical space and allows for easy access to goods using forklifts.
Main Components:
Upright Frame — The main supporting structure of the rack, responsible for bearing the weight.
Beam — Connects the two uprights and is used to hold the pallets.
Safety Lock/Pin — Prevents the beam from falling off, ensuring safety.
Base Plate — Secures the uprights to the ground, enhancing stability.
|
Product Name |
Selective pallet rack, heavy duty rack, back to back rack |
Certificate |
ISO 9001, ISO 14001, ISO 45001, TUV |
|
Brand |
Shitong |
Surface |
Galvanized/Powder Coating |
|
Usage |
Warehouse/industrial storage |
Free Warehouse Desgin |
Yes |
|
Material |
Q235B, Q355B steel |
Beam load capacity |
≤ 4000kg/layer |
|
Color |
RAL system, such as RAL5005, RAL5015, RAL2004 |
Rack size |
Customizable |
|
Place of Origin |
China |
HS code |
73089000 |
1. Can you design a racking layout for my warehouse for free?
Sure, and that's part of our service.
2. How can you get a quote as quickly as possible?
For racks with specific dimensions, please tell us:
1) Rack dimensions, like Height×Depth×Length?
2) Maximum load requirement for each layer.
3) How many layers for one independent rack consists of.
4) The quantity of racks you need.
For warehouses that need to provide rack drawings, please tell us:
1) Your pallet size, and which dimension of the pallet is for the forklift's entry direction?
2) The maximum height and maximum load requirements for one pallet plus cargo.
3) Provide your warehouse drawing.
3. What’s your payment terms?
TT or L/C at sight.
Project Cases& Working Line
Exhibition:
